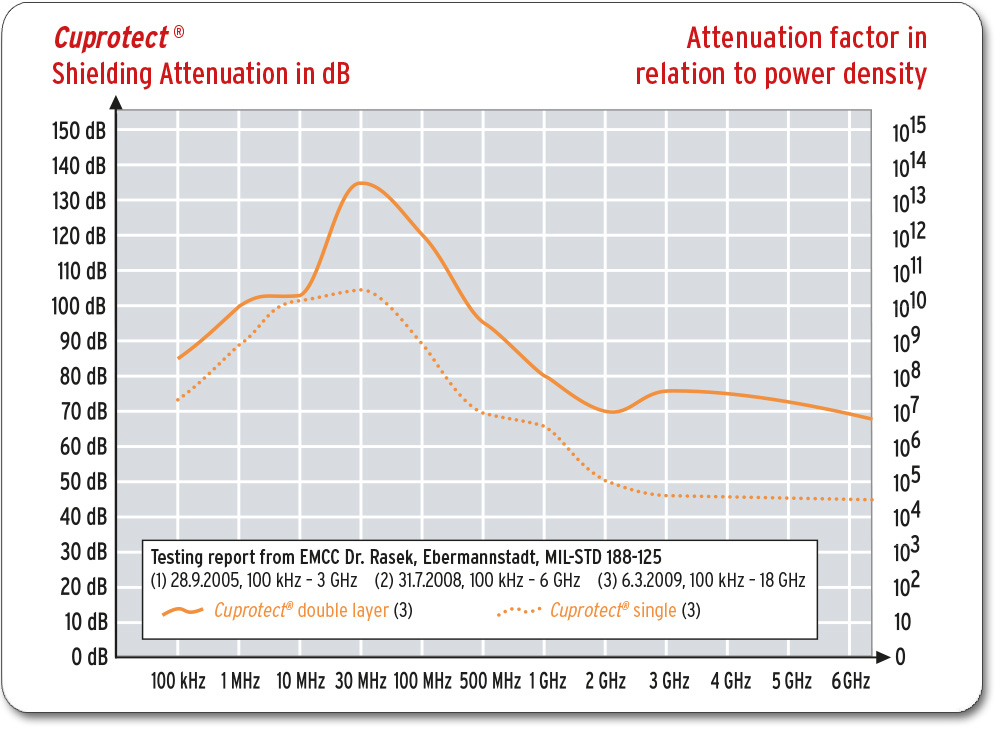

Shielding Effectiveness of Cuprotect®





Cuprotect® Shielding Window with P7B-Pane

Cuprotect® Shielding Window is the ideal addition to wall shielding. Wall areas with the same level of conductivity will not be interrupted by the window. The shielding attenuation will remain at a high level across the entire frequency range. Requirements for safety glass or thermal insulation can be easily integrated.

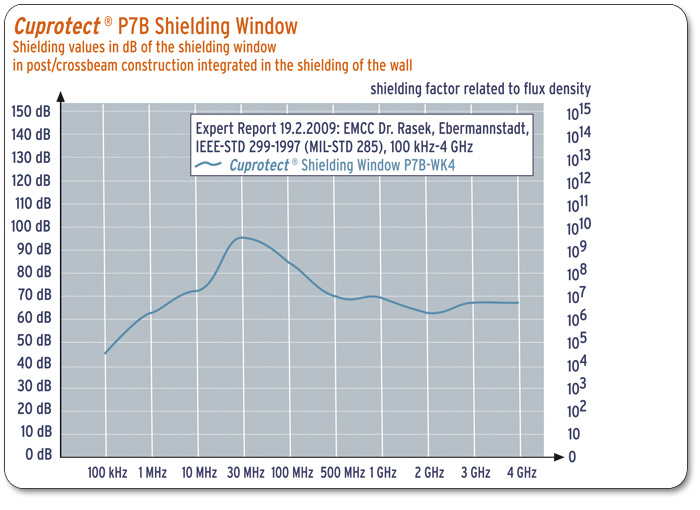

Testing at the EMC Laboratory of Dr. Rasek on 19 February 2009:

Labortest Abschirm-Fenster Labortest Abschirm-Fenster Labortest Abschirm-Fenster
Exterior side of Cuprotect® Shielding Window with aluminium frame
Interior side of Cuprotect® Shielding Window with wood frame
Interior side of Cuprotect® Shielding Window with wood frame

Cuprotect®-Abschirmfenster P7B-Scheibe / WK4-Rahmen Diagramm


Cuprotect® Products for All Applications (Wood-Frame Construction, Plaster, etc.):

Labortest Abschirm-Fenster Labortest Abschirm-Fenster Labortest Abschirm-Fenster
Cuprotect® in insulated render system
EMC testing of Cuprotect® in plaster
Cuprotect® embedded in bitumen


Cuprotect®-Abschirmfenster P7B-Scheibe / WK4-Rahmen Diagramm

Cuprotect®-Abschirmfenster P7B-Scheibe / WK4-Rahmen Diagramm



Cuprotect®A1 for Roof and Wood-Frame Construction Applications

Cuprotect®-Abschirmfenster P7B-Scheibe / WK4-Rahmen Diagramm

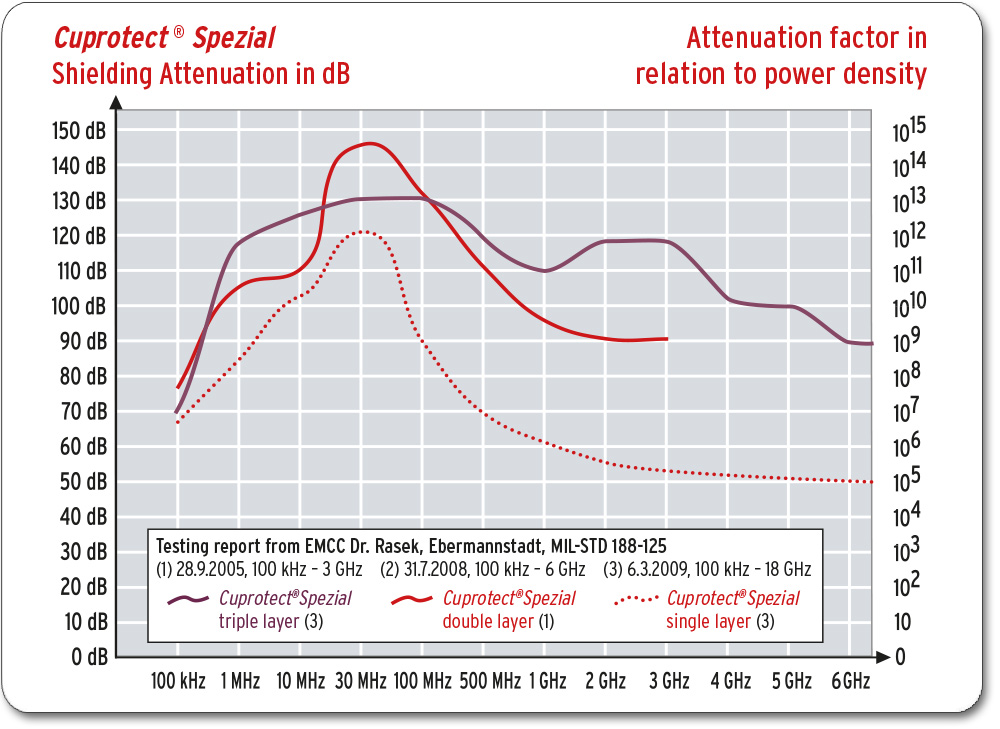

In both accredited EMC testing laboratories, EMC Test NRW GmbH (Dortmund, 23/11/2004) and EMCC Dr. Rasek (Ebermannstadt, 16/02/2005), Cuprotect® SPECIAL was tested for its shielding effectiveness under normal operating conditions. Various techniques for connecting the copper mesh sheets to each other were tested. When using double-layer Cuprotect® SPECIAL, the high testing requirements of MIL-STD 188-125 could be met.

In addition, the excellent shielding effectiveness of Cuprotect®, Cuprotect® SPECIAL, and Cuprotect® A1 was also confirmed by Prof. Pauli, a shielding specialist from the University of the German Federal Armed Forces, Munich:

Cuprotect® Assessment:
"The tests revealed that Cuprotect® is ideally suited for the shielding of electromagnetic waves – especially those in the mobile phone radiation range."

Cuprotect®Spezial Assessment:
"The tests revealed that Cuprotect® SPECIAL is ideally suited for the shielding of electromagnetic waves – especially for any type of polarization in the UHF frequency range (300 MHz-3 GHz) and up to 18 GHz."

Cuprotect®A1 Assessment
"The tests demonstrated that Cuprotect® A1 showed excellent attenuation
values for shielding electromagnetic waves of any type of polarization across
the entire frequency range tested."
(Prof. Dipl.-Ing. Pauli, Testing Reports 03/07/2002, 24/01/2003, 14/01/2005)
